HYSS Group supplies seamless stainless steel pipe and tube for industrial applications. The available page data covers ASTM A312, ASME B36.19 and ASME B36.10 dimensions, with TP304, TP304L, TP316 and TP316L among the listed grades.
Seamless Carbon Steel Pipe/Tube
Seamless Stainless Steel Pipe/Tube
Seamless Duplex Steel Pipe/Tube
Seamless Alloy Steel Pipe/Tube
Seamless Special Steel Pipe/Tube
Seamless Steel Line Pipe
Electric Resistance Welding Steel Pipe/Tube
Longitudinally Submerged Arc Welding Steel Pipe/Tube
Spirally Submerged Arc Welding Steel Pipe/Tube
Coil Tube
Seamless Carbon Steel Pipe/Tube
NPS: 1/8" to 36"
End:BE/ PE/ Threaded (NPT, BSP)
Wall Thickness:
Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS, Sch80, Sch100, Sch120, Sch140, Sch160, XXS, 1.24mm-63.5mm etc
Surface Finishing:black/red/yellow painting, galvanized, lightly oiled, 3PE, 3PP,etc
Standard: ASME B36.19, ASME B36.10, (Customization Available), ASTM A53, A106, API 5L, A179, A192 etc
Material Range:
ASTM A53 Gr.A/Gr.B, ASTM A106 Gr.A/Gr.B/GR.C, ASTM A179, ASTM A192, etc.

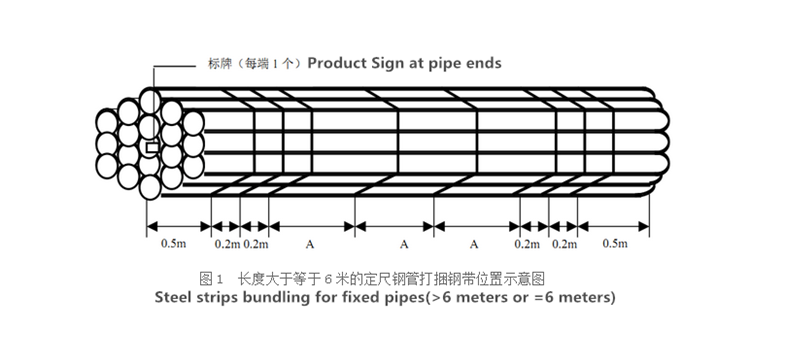

Package: PP wrapped/ bundled/ wooden box

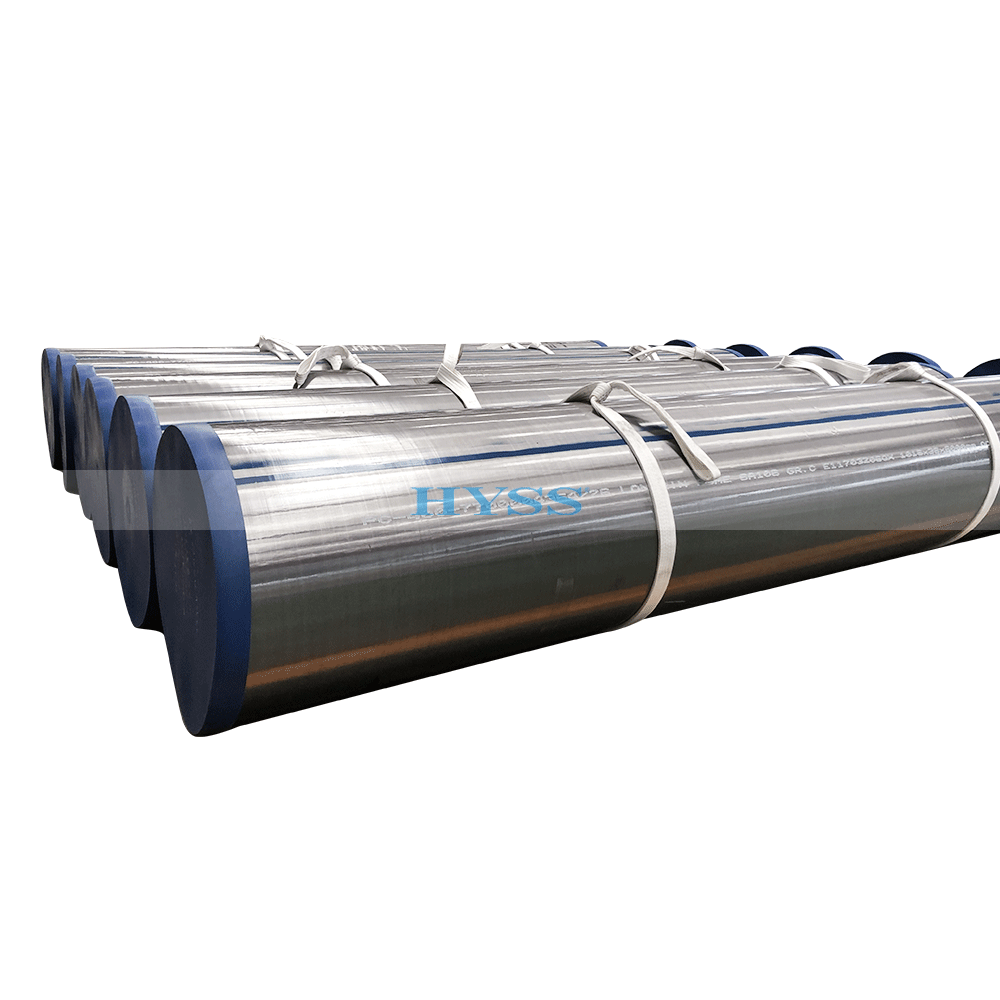

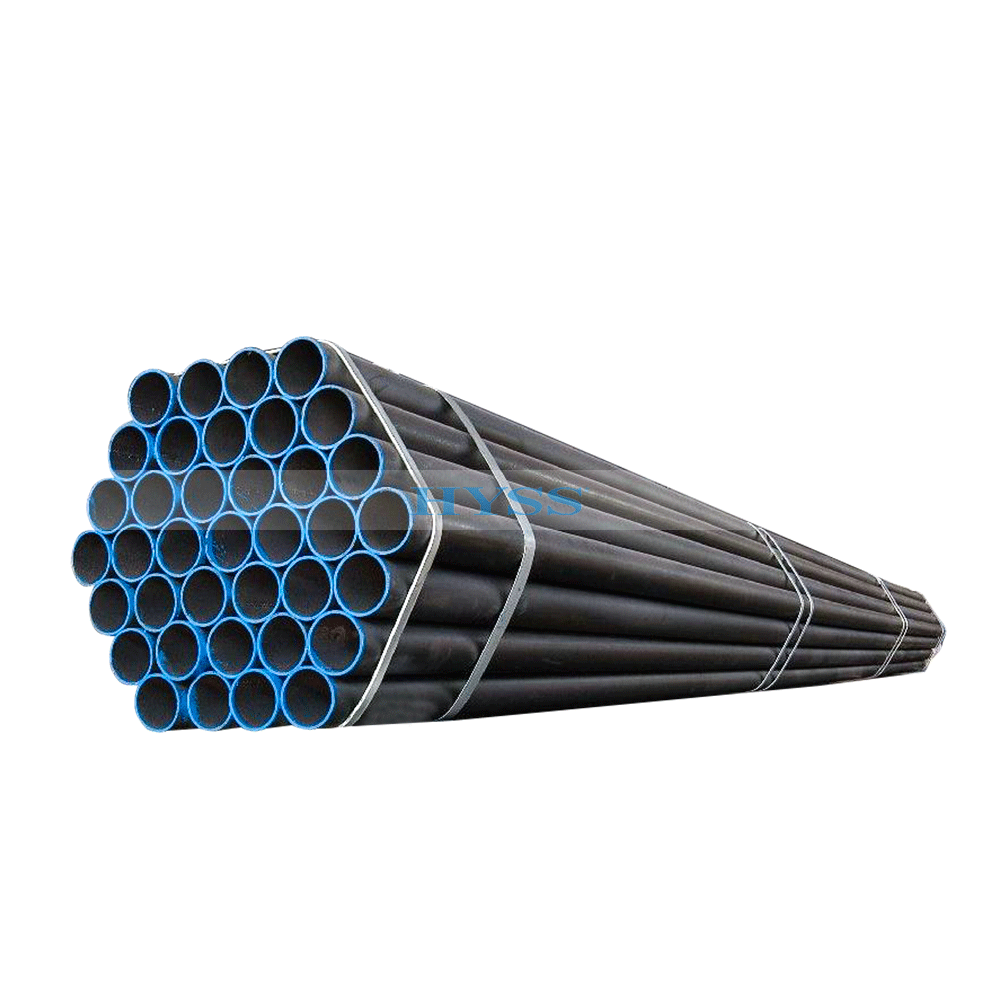

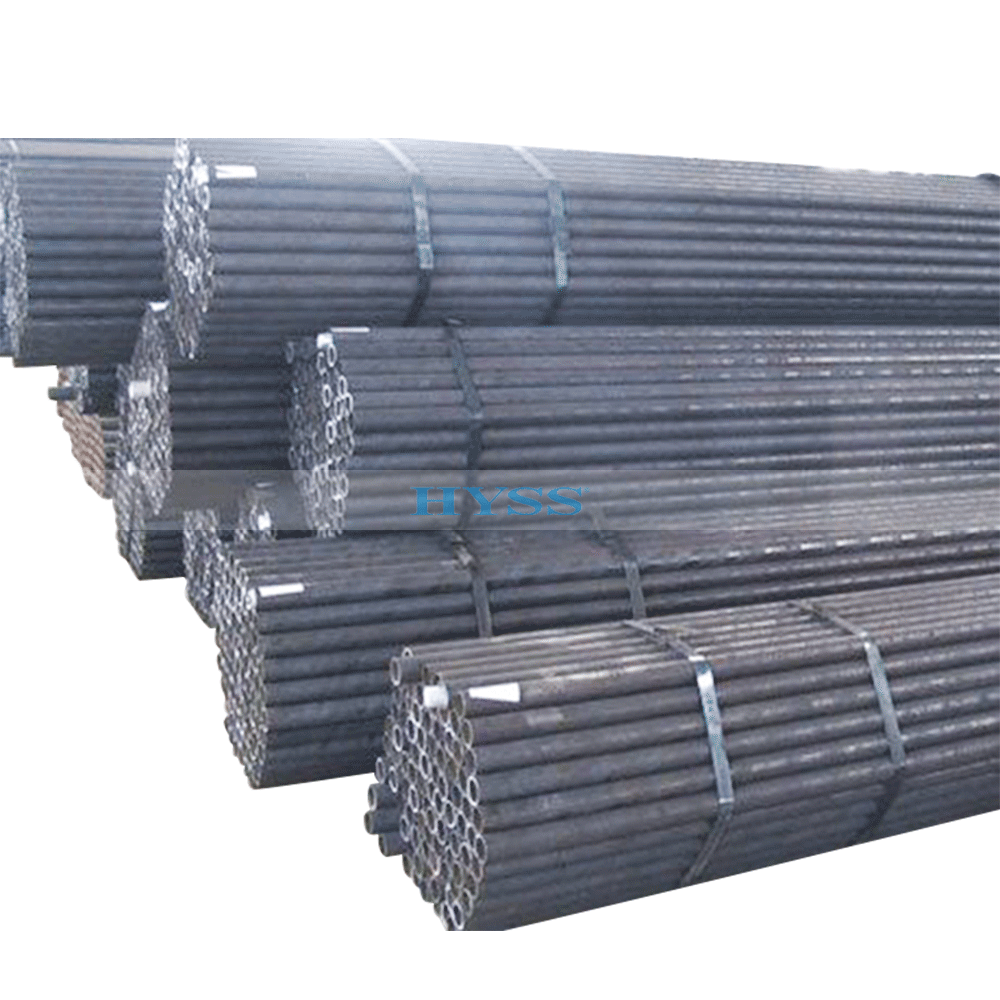

Pictures:
Dimensions as below:
| Norminal Pipe Size | Outside Diameter | Norminal Wall Thickness (mm) | ||||||
| NPS | DN | D (mm) | sch 5s | sch 10s | sch 10 | sch 20 | sch 30 | sch 40s |
| 1/8 | 6 | 10.3 | - | 1.24 | 1.24 | - | 1.45 | 1.73 |
| 1/4 | 8 | 13.7 | - | 1.65 | 1.65 | - | 1.85 | 2.24 |
| 3/8 | 10 | 17.1 | - | 1.65 | 1.65 | - | 1.85 | 2.31 |
| 1/2 | 15 | 21.3 | 1.65 | 2.11 | 2.11 | - | 2.41 | 2.77 |
| 3/4 | 20 | 26.7 | 1.65 | 2.11 | 2.11 | - | 2.41 | 2.87 |
| 1 | 25 | 33.4 | 1.65 | 2.77 | 2.77 | - | 2.9 | 3.38 |
| 1.1/4 | 32 | 42.2 | 1.65 | 2.77 | 2.77 | - | 2.97 | 3.56 |
| 1.1/2 | 40 | 48.3 | 1.65 | 2.77 | 2.77 | - | 3.18 | 3.68 |
| 2 | 50 | 60.3 | 1.65 | 2.77 | 2.77 | - | 3.18 | 3.91 |
| 2.1/2 | 65 | 73 | 2.11 | 3.05 | 3.05 | - | 4.78 | 5.16 |
| 3 | 80 | 88.9 | 2.11 | 3.05 | 3.05 | - | 4.78 | 5.49 |
| 3.1/2 | 90 | 101.6 | 2.11 | 3.05 | 3.05 | - | 4.78 | 5.74 |
| 4 | 100 | 114.3 | 2.11 | 3.05 | 3.05 | - | 4.78 | 6.02 |
| 5 | 125 | 141.3 | 2.77 | 3.4 | 3.4 | - | - | 6.55 |
| 6 | 150 | 168.3 | 2.77 | 3.4 | 3.4 | - | - | 7.11 |
| 8 | 200 | 219.1 | 2.77 | 3.76 | 3.76 | 6.35 | 7.04 | 8.18 |
| 10 | 250 | 273.1 | 3.4 | 4.19 | 4.19 | 6.35 | 7.8 | 9.27 |
| 12 | 300 | 323.9 | 3.96 | 4.57 | 4.57 | 6.35 | 8.38 | 9.53 |
| 14 | 350 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | - |
| 16 | 400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | - |
| 18 | 450 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | - |
| 20 | 500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | - |
| 22 | 550 | 558.8 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | - |
| 24 | 600 | 609.6 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | - |
| 26 | 650 | 660.4 | - | - | 7.92 | 12.7 | - | - |
| 28 | 700 | 711.2 | - | - | 7.92 | 12.7 | 15.88 | - |
| 30 | 750 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | - |
| 32 | 800 | 812.8 | - | - | 7.92 | 12.7 | 15.88 | - |
| 34 | 850 | 863.6 | - | - | 7.92 | 12.7 | 15.88 | - |
| 36 | 900 | 914.4 | - | - | 7.92 | 12.7 | 15.88 | - |
| Norminal Pipe Size | Outside Diameter | Norminal Wall Thickness (mm) | ||||||
| NPS | DN | D (mm) | STD | sch 40 | sch 60 | sch 80s | XS | sch 80 |
| 1/8 | 6 | 10.3 | 1.73 | 1.73 | - | 2.41 | 2.41 | 2.41 |
| 1/4 | 8 | 13.7 | 2.24 | 2.24 | - | 3.02 | 3.02 | 3.02 |
| 3/8 | 10 | 17.1 | 2.31 | 2.31 | - | 3.2 | 3.2 | 3.2 |
| 1/2 | 15 | 21.3 | 2.77 | 2.77 | - | 3.73 | 3.73 | 3.73 |
| 3/4 | 20 | 26.7 | 2.87 | 2.87 | - | 3.91 | 3.91 | 3.91 |
| 1 | 25 | 33.4 | 3.38 | 3.38 | - | 4.55 | 4.55 | 4.55 |
| 1.1/4 | 32 | 42.2 | 3.56 | 3.56 | - | 4.85 | 4.85 | 4.85 |
| 1.1/2 | 40 | 48.3 | 3.68 | 3.68 | - | 5.08 | 5.08 | 5.08 |
| 2 | 50 | 60.3 | 3.91 | 3.91 | - | 5.54 | 5.54 | 5.54 |
| 2.1/2 | 65 | 73 | 5.16 | 5.16 | - | 7.01 | 7.01 | 7.01 |
| 3 | 80 | 88.9 | 5.49 | 5.49 | - | 7.62 | 7.62 | 7.62 |
| 3.1/2 | 90 | 101.6 | 5.74 | 5.74 | - | 8.08 | 8.08 | 8.08 |
| 4 | 100 | 114.3 | 6.02 | 6.02 | - | 8.56 | 8.56 | 8.56 |
| 5 | 125 | 141.3 | 6.55 | 6.55 | - | 9.53 | 9.53 | 9.53 |
| 6 | 150 | 168.3 | 7.11 | 7.11 | - | 10.97 | 10.97 | 10.97 |
| 8 | 200 | 219.1 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 |
| 10 | 250 | 273.1 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 |
| 12 | 300 | 323.9 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 |
| 14 | 350 | 355.6 | 9.53 | 11.13 | 15.09 | - | 12.7 | 19.05 |
| 16 | 400 | 406.4 | 9.53 | 12.7 | 16.66 | - | 12.7 | 21.44 |
| 18 | 450 | 457.2 | 9.53 | 14.27 | 19.05 | - | 12.7 | 23.83 |
| 20 | 500 | 508 | 9.53 | 15.09 | 20.62 | - | 12.7 | 26.19 |
| 22 | 550 | 558.8 | 9.53 | - | 22.23 | - | 12.7 | 28.58 |
| 24 | 600 | 609.6 | 9.53 | 17.48 | 24.61 | - | 12.7 | 30.96 |
| 26 | 650 | 660.4 | 9.53 | - | - | - | 12.7 | - |
| 28 | 700 | 711.2 | 9.53 | - | - | - | 12.7 | - |
| 30 | 750 | 762 | 9.53 | - | - | - | 12.7 | - |
| 32 | 800 | 812.8 | 9.53 | 17.48 | - | - | 12.7 | - |
| 34 | 850 | 863.6 | 9.53 | 17.48 | - | - | 12.7 | - |
| 36 | 900 | 914.4 | 9.53 | 17.48 | - | - | 12.7 | - |
| Norminal Pipe Size | Outside Diameter | Norminal Wall Thickness (mm) | ||||||
| NPS | DN | D (mm) | sch 80 | sch 100 | sch 120 | sch 140 | sch 160 | XXS |
| 1/8 | 6 | 10.3 | 2.41 | - | - | - | - | - |
| 1/4 | 8 | 13.7 | 3.02 | - | - | - | - | - |
| 3/8 | 10 | 17.1 | 3.2 | - | - | - | - | - |
| 1/2 | 15 | 21.3 | 3.73 | - | - | - | 4.78 | 7.47 |
| 3/4 | 20 | 26.7 | 3.91 | - | - | - | 5.56 | 7.82 |
| 1 | 25 | 33.4 | 4.55 | - | - | - | 6.35 | 9.09 |
| 1.1/4 | 32 | 42.2 | 4.85 | - | - | - | 6.35 | 9.7 |
| 1.1/2 | 40 | 48.3 | 5.08 | - | - | - | 7.14 | 10.15 |
| 2 | 50 | 60.3 | 5.54 | - | - | - | 8.74 | 11.07 |
| 2.1/2 | 65 | 73 | 7.01 | - | - | - | 9.53 | 14.02 |
| 3 | 80 | 88.9 | 7.62 | - | - | - | 11.13 | 15.24 |
| 3.1/2 | 90 | 101.6 | 8.08 | - | - | - | - | - |
| 4 | 100 | 114.3 | 8.56 | - | 11.13 | - | 13.49 | 17.12 |
| 5 | 125 | 141.3 | 9.53 | - | 12.7 | - | 15.88 | 19.05 |
| 6 | 150 | 168.3 | 10.97 | - | 14.27 | - | 18.26 | 21.95 |
| 8 | 200 | 219.1 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 25.4 |
| 10 | 250 | 273.1 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
| 12 | 300 | 323.9 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 14 | 350 | 355.6 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | - |
| 16 | 400 | 406.4 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | - |
| 18 | 450 | 457.2 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | - |
| 20 | 500 | 508 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | - |
| 22 | 550 | 558.8 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | - |
| 24 | 600 | 609.6 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | - |
| 26 | 650 | 660.4 | - | - | - | - | - | - |
| 28 | 700 | 711.2 | - | - | - | - | - | - |
| 30 | 750 | 762 | - | - | - | - | - | - |
| 32 | 800 | 812.8 | - | - | - | - | - | - |
| 34 | 850 | 863.6 | - | - | - | - | - | - |
| 36 | 900 | 914.4 | - | - | - | - | - | - |
